Black Scorpion Project

Installed the Skinz knee pads. They were so nice on my last sled. They fit nice

20161119_172038 copy.jpg
20161119_172613 copy.jpg
20161119_172623 copy.jpg
20161119_173219 copy.jpg

Updated the PIDD with Base maps and Trail maps for canada.
20161118_211614 copy.jpg
20161119_113433 copy.jpg

Theres a power wire already under the dash. You need a standard double conector. This power is ONLY on if sled is running. Red wire is positive

20161119_212141 copy.jpg
20161119_212144 copy.jpg
20161120_122250 copy.jpg
20161120_122344 copy.jpg

Installed scratchers incase i ever need them. Last yrs 2016 assault i never had any issues with overheating and it was end of yr and no snow in some spots. Id rather have them THEN not have them and need them. I did not want to remove any wheels.

Customer wanted me to install normal scratchers on his. Removed front wheels and Even then they still dont install 100%. The top wheel will come down and hit the wire on full compression if that will ever happen on the new suspension.

I installed Skidoo summit scratchers. Can also reverse with these if you want. You will need 2 stainless 5/16" Eye bolts. 2x nylocks for them. 2X none nylocks for them. 2X thick washers for them. Also 2X 1/4 bolts 3.25" long or 3.5". couple washers and locknuts.
20161119_123441 copy.jpg
20161119_151203 copy.jpg

Last edited:
Remove the rear inner wheel bolts. Dont need bolts anymore. to short. Install the summit spring bracket mount with the new 3.25" bolts. tighten up. Then drill the 2nd hole for the new summit bolts that come in kit. No pic of that. New bolt holds the spring and the bracket.

20161119_122728 copy.jpg
20161121_190936 copy.jpg

Last edited:
Cut just less then half of the eye bolt off. No less. For a reason in the next step. Drill holes for eye bolts. Get thick stainless washer and cut enough off so washer sits flat just above sliders. Have to adjust how far it sticks out next

20161119_164351 copy.jpg
20161119_164344 copy.jpg

install it loose with nuts so you can adjust how far they stick out. You need to have them out in the right spot so when the top wheels comes down and you actually bottom out the wheel will actually go half way into the eyebolt. Thats why you have to cut half or just less then half off the eye bolt.

Use a straight edge on top wheel and it will show you how far out to put the hook so wheel can go into it. You will have to hit something pretty hard to bottom out wheel all the way down. Unlikely but just incase.

20161119_164411 copy.jpg
20161119_164455 copy.jpg
20161119_164503 copy.jpg

on left side use the rear set of holes. The wheel on that side was on the front set of holes. I moved mount to back hole so its same as other side.
20161119_171204 copy.jpg
20161119_171215 copy.jpg

Install the Trail version clutch kit from northstar performance. Helix, both springs, weights, bushings. And got the spyder shim kit from catzass.net .

I always make my own marks on clutch so it goes back together the same position for balance.

20161118_083325 copy.jpg
20161118_083332 copy.jpg
20161118_083723 copy.jpg
20161118_083727 copy.jpg

Swap provided weights. Install the spyder shims on the thrust side of the weights. Gets rid of the sloppy side to side play. Makes a Big difference. It takes a bit of time getting the shims in right spot to get bolt through. Install the new white spring. Put cover on in the right position for balance.


20161118_084840 copy.jpg
20161118_093106 copy.jpg
20161118_093112 copy.jpg

Heat up and remove secondary bolts. remove helix

20161118_094619 copy.jpg
20161118_094927 copy.jpg
20161118_095655 copy.jpg

compress and remove snap ring to release spring.

20161118_100133 copy.jpg
20161118_101527 copy.jpg

Remove spring and gold container. Kit comes with plastic washers to put under container but instead i used a thrust bearing for no friction.

20161118_101812 copy.jpg
20161118_101821 copy.jpg
20161118_101828 copy.jpg
20161118_101831 copy.jpg
20161118_101839 copy.jpg

New spring. push back down to get snapring back on. align the teeth to shaft. theres one gap in the teeth. put helix back on

20161118_101849 copy.jpg
20161118_101858 copy.jpg
20161118_102150 copy.jpg
20161118_102338 copy.jpg

check alignment with tool. max .060 i believe. adjust washer size behind secondary if u have to

20161118_104342 copy.jpg
20161118_105950 copy.jpg
20161118_110000 copy.jpg
20161118_110203 copy.jpg

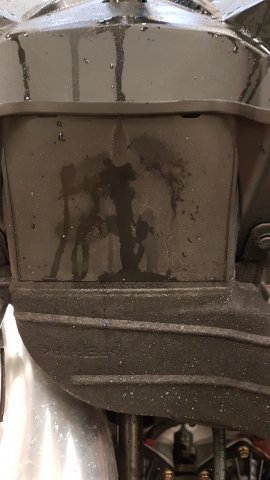

Heres the reason i did the intake update kit. Pulled hood off a sled that was outside today and theres water dripping down to crack that can get into intake

20161122_143041 copy.jpg

axxasult said:
Heres the reason i did the intake update kit. Pulled hood off a sled that was outside today and theres water dripping down to crack that can get into intake

View attachment 1580
Click to expand...
Intake update kit? Do you mean the piece of tape Polaris used on the 2015's as a update? Or is there something different for the Assualt's?

racerdave said:
Intake update kit? Do you mean the piece of tape Polaris used on the 2015's as a update? Or is there something different for the Assualt's?
Click to expand...

Ya just the half tape thing. You could stick something else on there if you want.
